Blog - Learning Loss for Active Learning

Why Active Learning?

Experimental result of semi-supervised learning suggests that higher portion of annotated data ensures better performance.
But, annotation is expensive and time-consuming. Thus, limiting the budget.
Active learning is a solution to this problem as it selects data points that are most informative and asks for annotation of these data points only.

What is Active Learning?

Model actively selects data points that the model is uncertain about. Using the selected data points, the model is retrained.
Eg: In a classification task, the model selects data points that are close to the decision boundary. Later, the model is retrained using the selected data points.
Lets’ demonstrate this using CIFAR-10 example.

import torch
import random
import numpy as np
import torch.nn as nn
from tqdm import tqdm
import matplotlib.pyplot as plt
import torch.optim as optim
import torch.nn.functional as F
from torch.utils.data import DataLoader
import torch.optim.lr_scheduler as lr_scheduler
from torch.utils.data.sampler import SubsetRandomSampler

# Torchvison
import torchvision.transforms as T
from torchvision.datasets import CIFAR10

import os

os.environ["TF_XLA_FLAGS"] = "--tf_xla_enable_xla_devices"  ## setting the environment
os.environ["CUDA_DEVICE_ORDER"] = "PCI_BUS_ID"
os.environ["CUDA_VISIBLE_DEVICES"] = "1"  ## using GPU core 1

Model Architecture

class BasicBlock(nn.Module):
    expansion = 1

    def __init__(self, in_planes, planes, stride=1):
        super(BasicBlock, self).__init__()
        self.conv1 = nn.Conv2d(in_planes, planes, kernel_size=3, stride=stride, padding=1, bias=False)
        self.bn1 = nn.BatchNorm2d(planes)
        self.conv2 = nn.Conv2d(planes, planes, kernel_size=3, stride=1, padding=1, bias=False)
        self.bn2 = nn.BatchNorm2d(planes)

        self.shortcut = nn.Sequential()
        if stride != 1 or in_planes != self.expansion*planes:
            self.shortcut = nn.Sequential(
                nn.Conv2d(in_planes, self.expansion*planes, kernel_size=1, stride=stride, bias=False),
                nn.BatchNorm2d(self.expansion*planes)
            )

    def forward(self, x):
        out = F.relu(self.bn1(self.conv1(x)))
        out = self.bn2(self.conv2(out))
        out += self.shortcut(x)
        out = F.relu(out)
        return out

class ResNet(nn.Module):
    def __init__(self, block, num_blocks, num_classes=10):
        super(ResNet, self).__init__()
        self.in_planes = 64

        self.conv1 = nn.Conv2d(3, 64, kernel_size=3, stride=1, padding=1, bias=False)
        self.bn1 = nn.BatchNorm2d(64)
        self.layer1 = self._make_layer(block, 64, num_blocks[0], stride=1)
        self.layer2 = self._make_layer(block, 128, num_blocks[1], stride=2)
        self.layer3 = self._make_layer(block, 256, num_blocks[2], stride=2)
        self.layer4 = self._make_layer(block, 512, num_blocks[3], stride=2)
        self.linear = nn.Linear(512*block.expansion, num_classes)

    def _make_layer(self, block, planes, num_blocks, stride):
        strides = [stride] + [1]*(num_blocks-1)
        layers = []
        for stride in strides:
            layers.append(block(self.in_planes, planes, stride))
            self.in_planes = planes * block.expansion
        return nn.Sequential(*layers)

    def forward(self, x):
        out = F.relu(self.bn1(self.conv1(x)))
        out1 = self.layer1(out)
        out2 = self.layer2(out1)
        out3 = self.layer3(out2)
        out4 = self.layer4(out3)
        out = F.avg_pool2d(out4, 4)
        out = out.view(out.size(0), -1)
        out = self.linear(out)
        return out, [out1, out2, out3, out4]

def ResNet18(num_classes = 10):
    return ResNet(BasicBlock, [2,2,2,2], num_classes)

Data Transformation (CIFAR-10)

train_transform = T.Compose([
    T.RandomHorizontalFlip(),
    T.RandomCrop(size=32, padding=4),
    T.ToTensor(),
    T.Normalize([0.4914, 0.4822, 0.4465], [0.2023, 0.1994, 0.2010])
])

test_transform = T.Compose([
    T.ToTensor(),
    T.Normalize([0.4914, 0.4822, 0.4465], [0.2023, 0.1994, 0.2010])
])

cifar10_train = CIFAR10('../cifar10', train=True, download=True, transform=train_transform)
cifar10_unlabeled   = CIFAR10('../cifar10', train=True, download=True, transform=test_transform)
cifar10_test  = CIFAR10('../cifar10', train=False, download=True, transform=test_transform)

Files already downloaded and verified
Files already downloaded and verified
Files already downloaded and verified

class SubsetSequentialSampler(torch.utils.data.Sampler):
    def __init__(self, indices):
        self.indices = indices

    def __iter__(self):
        return (self.indices[i] for i in range(len(self.indices)))

    def __len__(self):
        return len(self.indices)

Visualising the dataset

# plot some sample images from the dataset
fig, axes = plt.subplots(nrows=3, ncols=5, figsize=(10, 6))
for i, ax in enumerate(axes.flat):
    img, label = cifar10_train[i]
    img = np.clip(img.permute(1, 2, 0), 0, 1) # clip the input image for the valid range for imshow
    ax.imshow(img)
    ax.set_title(f"Label: {label}")
    ax.axis('off')
plt.tight_layout()
plt.show()

# cifar_10_labels = {0: 'airplane', 1: 'automobile', 2: 'bird', 3: 'cat', 4: 'deer',
# 5: 'dog', 6: 'frog', 7: 'horse', 8: 'ship', 9: 'truck'}

Training & Testing function

def train(model, criterion, optimizer, dataloaders, num_epochs, scheduler):
    model.train()
    train_accuracy = []
    for epoch in range(num_epochs):
        scheduler.step()

        train_total = 0
        train_correct = 0

        for data in tqdm(dataloaders['train'], leave=False, total=len(dataloaders['train'])):
            inputs = data[0].cuda()
            labels = data[1].cuda()
            optimizer.zero_grad()

            scores, features = model(inputs)
            target_loss = criterion(scores, labels)
            _, preds = torch.max(scores.data, 1)
            train_total += labels.size(0)
            train_correct += (preds == labels).sum().item()

            loss = torch.sum(target_loss) / target_loss.size(0)
            loss.backward()
            optimizer.step()

        train_acc = 100* train_correct / train_total
        train_accuracy.append(train_acc)

        # Evaluating test loss
        total = 0
        correct = 0
        model.eval()
        for data in dataloaders['test']:
            inputs = data[0].cuda()
            labels = data[1].cuda()

            scores, features = model(inputs)
            _, preds = torch.max(scores.data, 1)
            total += labels.size(0)
            correct += (preds == labels).sum().item()

        test_acc = 100* correct / total

    return train_accuracy, test_acc

Using Entropy as the acquisition function for active learning

def entropy(model, unlabeled_loader):
    model.eval()
    entropies = []
    with torch.no_grad():
        for data in unlabeled_loader:
            inputs = data[0].cuda()
            scores, _ = model(inputs)
            entropy = -torch.sum(F.softmax(scores, dim=1) * F.log_softmax(scores, dim=1), dim=1)
            entropies.append(entropy.cpu().numpy())
    return np.concatenate(entropies)

## CONFIG

NUM_TRAIN = 50000
BATCH = 128
ADDENDUM = 1000
SUBSET = 10000
MOMENTUM = 0.9
WDECAY = 5e-4
LR = 0.01
CYCLES = 5
MILESTONES = [160]
EPOCH = 40

Active Learning Loop

indices = list(range(NUM_TRAIN))
random.shuffle(indices)
labeled_set = indices[:ADDENDUM]
unlabeled_set = indices[ADDENDUM:]

test_accuracy_list = []
train_accuracy_list = []

train_loader = DataLoader(cifar10_train, batch_size=BATCH, sampler=SubsetRandomSampler(labeled_set), pin_memory=True)
test_loader  = DataLoader(cifar10_test, batch_size=BATCH)
dataloaders  = {'train': train_loader, 'test': test_loader}

# Model
resnet18    = ResNet18(num_classes=10).cuda()
torch.backends.cudnn.benchmark = False

# Active learning cycles
for cycle in range(CYCLES):
    criterion = nn.CrossEntropyLoss(reduction='none')
    optimizer = optim.SGD(resnet18.parameters(), lr=LR, momentum=MOMENTUM, weight_decay=WDECAY)
    scheduler = lr_scheduler.MultiStepLR(optimizer, milestones=MILESTONES)

    # Training and test
    train_acc, test_acc = train(resnet18, criterion, optimizer, dataloaders, EPOCH, scheduler)
    test_accuracy_list.append(test_acc)
    train_accuracy_list.append(train_acc)
    print('Cycle {}/{} || Label set size {}: Test Accuracy {} '.format(cycle+1, CYCLES, len(labeled_set), test_acc))

    random.shuffle(unlabeled_set)
    subset = unlabeled_set[:SUBSET]

    # Create unlabeled dataloader for the unlabeled subset
    unlabeled_loader = DataLoader(cifar10_unlabeled, batch_size=BATCH, sampler=SubsetSequentialSampler(subset), pin_memory=True)

    # Measure uncertainty of each data points in the subset
    uncertainty = entropy(resnet18, unlabeled_loader)

    # Index in ascending order
    arg = np.argsort(uncertainty)

    # Update the labeled dataset and the unlabeled dataset, respectively
    labeled_set += list(torch.tensor(subset)[arg][-ADDENDUM:].numpy())
    unlabeled_set = list(torch.tensor(subset)[arg][:-ADDENDUM].numpy()) + unlabeled_set[SUBSET:]

    # Create a new dataloader for the updated labeled dataset
    dataloaders['train'] = DataLoader(cifar10_train, batch_size=BATCH, sampler=SubsetRandomSampler(labeled_set),
                                        pin_memory=True)

/home/project_3/anaconda3/envs/gan/lib/python3.10/site-packages/torch/optim/lr_scheduler.py:139: UserWarning: Detected call of `lr_scheduler.step()` before `optimizer.step()`. In PyTorch 1.1.0 and later, you should call them in the opposite order: `optimizer.step()` before `lr_scheduler.step()`.  Failure to do this will result in PyTorch skipping the first value of the learning rate schedule. See more details at https://pytorch.org/docs/stable/optim.html#how-to-adjust-learning-rate
  warnings.warn("Detected call of `lr_scheduler.step()` before `optimizer.step()`. "

Cycle 1/5 || Label set size 1000: Test Accuracy 39.01
Cycle 2/5 || Label set size 2000: Test Accuracy 51.99
Cycle 3/5 || Label set size 3000: Test Accuracy 57.39
Cycle 4/5 || Label set size 4000: Test Accuracy 62.73
Cycle 5/5 || Label set size 5000: Test Accuracy 65.35

active_learning_loop = [1, 2, 3, 4, 5]  # Active learning loop numbers

plt.plot(active_learning_loop, test_accuracy_list, marker='o', linestyle='-')

plt.xlabel('Active Learning Loop')
plt.ylabel('Test Accuracy')
plt.title('Test Accuracy Over Active Learning Loop')
plt.show()

Learning to Loss Active Learning

In this active learning a loss prediction module is attached to the target network to predict the loss.
This module is then used to suggest the data that the target module is likely to produce a wrong prediction on.

Loss for the loss prediction network

\[\begin{array}{r} L_{\text {loss }}\left(\hat{l p}, l^p\right)= \max \left(0,-\mathbb{1}\left(l_i, l_j\right) \cdot\left(\hat{l_i}-\hat{l_j}\right)+\xi\right) \text { s.t. } \mathbb{1}\left(l_i, l_j\right)= \begin{cases}+1, & \text { if } l_i>l_j \\ -1, & \text { otherwise }\end{cases} \end{array}\]

We learn the loss prediction module by considering the difference between a pair of loss predictions, which completely make the loss prediction module discard the overall scale changes

def LossPredLoss(input, target, margin=1.0):
    assert len(input) % 2 == 0, 'the batch size is not even.'
    assert input.shape == input.flip(0).shape

    input = (input - input.flip(0))[:len(input)//2] # [l_1 - l_2B, l_2 - l_2B-1, ... , l_B - l_B+1], where batch_size = 2B
    target = (target - target.flip(0))[:len(target)//2]
    target = target.detach()

    one = 2 * torch.sign(torch.clamp(target, min=0)) - 1 # 1 operation which is defined by the authors
    loss = torch.sum(torch.clamp(margin - one * input, min=0))
    loss = loss / input.size(0) # Note that the size of input is already halved

    return loss

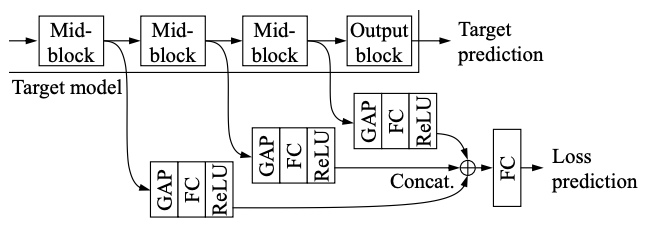

LossNet

LossNet takes in as input the output from the intermediate layer of the target network to predict the loss.


class LossNet(nn.Module):
    def __init__(self, feature_sizes=[32, 16, 8, 4], num_channels=[64, 128, 256, 512], interm_dim=128):
        super(LossNet, self).__init__()

        self.GAP1 = nn.AvgPool2d(feature_sizes[0])
        self.GAP2 = nn.AvgPool2d(feature_sizes[1])
        self.GAP3 = nn.AvgPool2d(feature_sizes[2])
        self.GAP4 = nn.AvgPool2d(feature_sizes[3])

        self.FC1 = nn.Linear(num_channels[0], interm_dim)
        self.FC2 = nn.Linear(num_channels[1], interm_dim)
        self.FC3 = nn.Linear(num_channels[2], interm_dim)
        self.FC4 = nn.Linear(num_channels[3], interm_dim)

        self.linear = nn.Linear(4 * interm_dim, 1)

    def forward(self, features):
        out1 = self.GAP1(features[0])
        out1 = out1.view(out1.size(0), -1)
        out1 = F.relu(self.FC1(out1))

        out2 = self.GAP2(features[1])
        out2 = out2.view(out2.size(0), -1)
        out2 = F.relu(self.FC2(out2))

        out3 = self.GAP3(features[2])
        out3 = out3.view(out3.size(0), -1)
        out3 = F.relu(self.FC3(out3))

        out4 = self.GAP4(features[3])
        out4 = out4.view(out4.size(0), -1)
        out4 = F.relu(self.FC4(out4))

        out = self.linear(torch.cat((out1, out2, out3, out4), 1))
        return out

# Function for evaluating the test accuracy
def test(models, dataloaders, mode='val'):
    assert mode == 'val' or mode == 'test'
    models['backbone'].eval()
    models['module'].eval()

    total = 0
    correct = 0
    with torch.no_grad():
        for (inputs, labels) in dataloaders[mode]:
            inputs = inputs.cuda()
            labels = labels.cuda()

            scores, _ = models['backbone'](inputs)
            _, preds = torch.max(scores.data, 1)
            total += labels.size(0)
            correct += (preds == labels).sum().item()

    return 100 * correct / total

# Training function for both the target model and the loss prediction module
def train(models, criterion, optimizers, schedulers, dataloaders, num_epochs, epoch_loss):
    for epoch in range(num_epochs):
        schedulers['backbone'].step()
        schedulers['module'].step()

        models['backbone'].train()
        models['module'].train()

        for data in tqdm(dataloaders['train'], leave=False, total=len(dataloaders['train'])):
            inputs = data[0].cuda()
            labels = data[1].cuda()

            optimizers['backbone'].zero_grad()
            optimizers['module'].zero_grad()

            scores, features = models['backbone'](inputs)
            target_loss = criterion(scores, labels)

            # After 120 epochs, stop the gradient from the loss prediction module propagated to the target model.
            if epoch > epoch_loss:
                features[0] = features[0].detach()
                features[1] = features[1].detach()
                features[2] = features[2].detach()
                features[3] = features[3].detach()
            pred_loss = models['module'](features)
            pred_loss = pred_loss.view(pred_loss.size(0))

            # Combined loss function
            m_backbone_loss = torch.sum(target_loss) / target_loss.size(0)
            m_module_loss   = LossPredLoss(pred_loss, target_loss, margin=MARGIN)
            loss            = m_backbone_loss + WEIGHT * m_module_loss

            loss.backward()
            optimizers['backbone'].step()
            optimizers['module'].step()

# Selecting the acquisition points based on the predictions of the loss prediction module
def get_uncertainty(models, unlabeled_loader):
    models['backbone'].eval()
    models['module'].eval()
    uncertainty = torch.tensor([]).cuda()

    with torch.no_grad():
        for (inputs, labels) in unlabeled_loader:
            inputs = inputs.cuda()
            scores, features = models['backbone'](inputs)
            pred_loss = models['module'](features)
            pred_loss = pred_loss.view(pred_loss.size(0))

            uncertainty = torch.cat((uncertainty, pred_loss), 0)
    return uncertainty.cpu()

EPOCHL = 120       # After EPOCHL, stop the gradient from the loss prediction module propagated to the target model.
MARGIN = 1.0
WEIGHT = 1.0

indices = list(range(NUM_TRAIN))
random.shuffle(indices)
labeled_set = indices[:ADDENDUM]
unlabeled_set = indices[ADDENDUM:]

test_accuracy_lal = []

train_loader = DataLoader(cifar10_train, batch_size=BATCH, sampler=SubsetRandomSampler(labeled_set), pin_memory=True)
test_loader  = DataLoader(cifar10_test, batch_size=BATCH)
dataloaders  = {'train': train_loader, 'test': test_loader}

# Model
resnet18    = ResNet18(num_classes=10).cuda()
loss_module = LossNet().cuda()
models      = {'backbone': resnet18, 'module': loss_module}
torch.backends.cudnn.benchmark = False

# Active learning cycles
for cycle in range(CYCLES):
    # Loss, criterion and scheduler (re)initialization
    criterion      = nn.CrossEntropyLoss(reduction='none')
    optim_backbone = optim.SGD(models['backbone'].parameters(), lr=LR,
                            momentum=MOMENTUM, weight_decay=WDECAY)
    optim_module   = optim.SGD(models['module'].parameters(), lr=LR,
                            momentum=MOMENTUM, weight_decay=WDECAY)
    sched_backbone = lr_scheduler.MultiStepLR(optim_backbone, milestones=MILESTONES)
    sched_module   = lr_scheduler.MultiStepLR(optim_module, milestones=MILESTONES)

    optimizers = {'backbone': optim_backbone, 'module': optim_module}
    schedulers = {'backbone': sched_backbone, 'module': sched_module}

    # Training and test
    train(models, criterion, optimizers, schedulers, dataloaders, EPOCH, EPOCHL)
    acc = test(models, dataloaders, mode='test')
    test_accuracy_lal.append(acc)
    print('Cycle {}/{} || Label set size {}: Test acc {}'.format(cycle+1, CYCLES, len(labeled_set), acc))

    # Randomly sample 10000 unlabeled data points
    random.shuffle(unlabeled_set)
    subset = unlabeled_set[:SUBSET]

    # Create unlabeled dataloader for the unlabeled subset
    unlabeled_loader = DataLoader(cifar10_unlabeled, batch_size=BATCH, sampler=SubsetSequentialSampler(subset), pin_memory=True)

    # Measure uncertainty of each data points in the subset
    uncertainty = get_uncertainty(models, unlabeled_loader)

    # Index in ascending order
    arg = np.argsort(uncertainty)

    # Update the labeled dataset and the unlabeled dataset, respectively
    labeled_set += list(torch.tensor(subset)[arg][-ADDENDUM:].numpy())
    unlabeled_set = list(torch.tensor(subset)[arg][:-ADDENDUM].numpy()) + unlabeled_set[SUBSET:]

    # Create a new dataloader for the updated labeled dataset
    dataloaders['train'] = DataLoader(cifar10_train, batch_size=BATCH, sampler=SubsetRandomSampler(labeled_set), pin_memory=True)

  0%|          | 0/8 [00:00<?, ?it/s]

Cycle 1/5 || Label set size 1000: Test acc 43.6
Cycle 2/5 || Label set size 2000: Test acc 50.23
Cycle 3/5 || Label set size 3000: Test acc 57.39
Cycle 4/5 || Label set size 4000: Test acc 63.17
Cycle 5/5 || Label set size 5000: Test acc 69.3

active_learning_loop = [1, 2, 3, 4, 5]  # Active learning loop numbers
plt.plot(active_learning_loop, test_accuracy_lal, marker='o', linestyle='-')

plt.xlabel('Active Learning Loop')
plt.ylabel('Test Accuracy')
plt.title('Test Accuracy Over Active Learning Loop')
plt.show()

References:

https://arxiv.org/pdf/1905.03677.pdf
https://github.com/Mephisto405/Learning-Loss-for-Active-Learning
